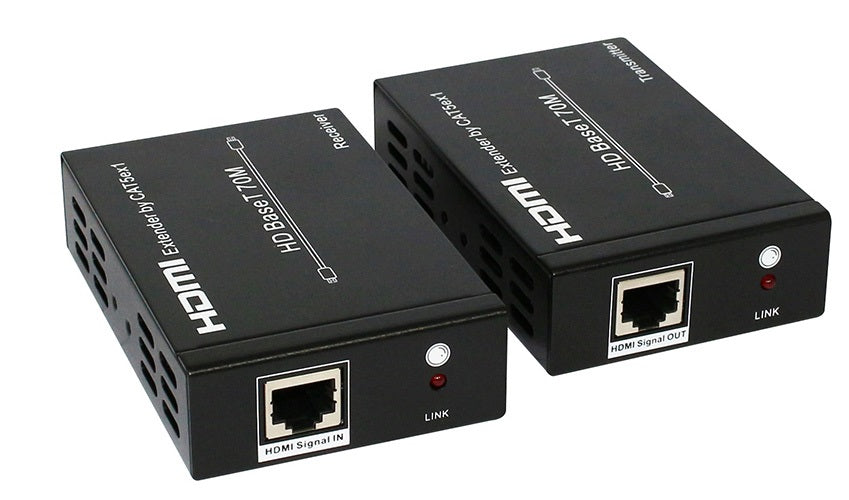

ASTROTEK HDMI Extender over RJ45 CAT5 CAT6 LAN Ethernet Network Converter Splitter for Foxtel Support 40m 4Kx 2K@30hz or 70m 1080p LS

ASTROTEK HDMI Extender over RJ45 CAT5 CAT6 LAN Ethernet Network Converter Splitter for Foxtel Support 40m 4Kx 2K@30hz or 70m 1080p LS
$379.90 AUD
$397.99 AUD $379.90 AUD
Sale Sold out
Fast Aussie Shipping

All our stock ships from Sydney & Melbourne Warehouse for quick delivery.

Trusted Quality

We carefully select products that deliver on performance, durability, and value.

Friendly Aussie Support

Got a question? Our local team is here to help you out, every step of the way.
TVs & Accessories
  • Express 48 hour dispatch
  • 30-day risk free return
  • Fast delivery Aus wide
View Product details
product-img
ASTROTEK HDMI Extender over RJ45 CAT5 CAT6 LAN Ethernet Network Converter Splitter for Foxtel Support 40m 4Kx 2K@30hz or 70m 1080p LS
$379.90 AUD
$397.99 AUD $379.90 AUD
V177-L-CBAT-HDMIEXT-4K
Astrotek HDMI Extender over RJ45 CAT5 CAT6 LAN Ethernet Network Converter Splitter for Foxtel Support 40m 4Kx 2K@30hz or 70m 1080p I. Introduction The cat5e/cat6 HDMI Extender is a tool which can extend your HDMI signal over 230fts/70meters to a compatible display. It is designed to convert HDMI signal to standard HD BaseT signal which can be transmitted by Internet cable. It also supports Transfer Bidirectional Infrared control signal together with the HDMI signal, so you can control the Source in the Sink side which is 230fts outside, also you can control the Sink in the Source side which is 230fts outside using the HDMI Extender. II. Features 1. POE(Power Over Ethernet)function is supported, either TX or RX is powered by24V@1A power supply, another does not need power from the DC jack. POE Power consumption is less than 10W. ※ See the description 1 2. Use single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distance transmission. 3. UTP cable termination follows the standard of IEEE-568B. 4. Transmission distance: ※Over CAT6 cable 70 meters: 1080P @60Hz36bit; 3D1080P@30Hz36bit; 40 meters: 1080P @60Hz@48bit; 1080P @120Hz@24bit; 3D1080P@60Hz@36bit; 4K x 2K@30Hz@24bit. 5. Support display resolutions up to 4K x 2K@30Hz 6. Full HD support: 1080p@60Hz@48 bit/pixels, 1080p@120Hz@24 bit/pixels, 3D 1080P60Hz and 4K x 2K@30Hz@24bit 7. Transfer Bidirectional Infrared control signal together with the HDMI signal. III. Package 1. HDMI Extender Transmitter -- 1PC 2. HDMI Extender Receiver ------ 1PC 3. Wideband IR Tx ----------------- 2PCS 4. Wideband IR Rx ----------------- 2PCS 5. 24V1A DC Power Supply ------ 1PC 6. Operation Manual -------------- 1PC 7. Mounting ears--------------------4PCS
