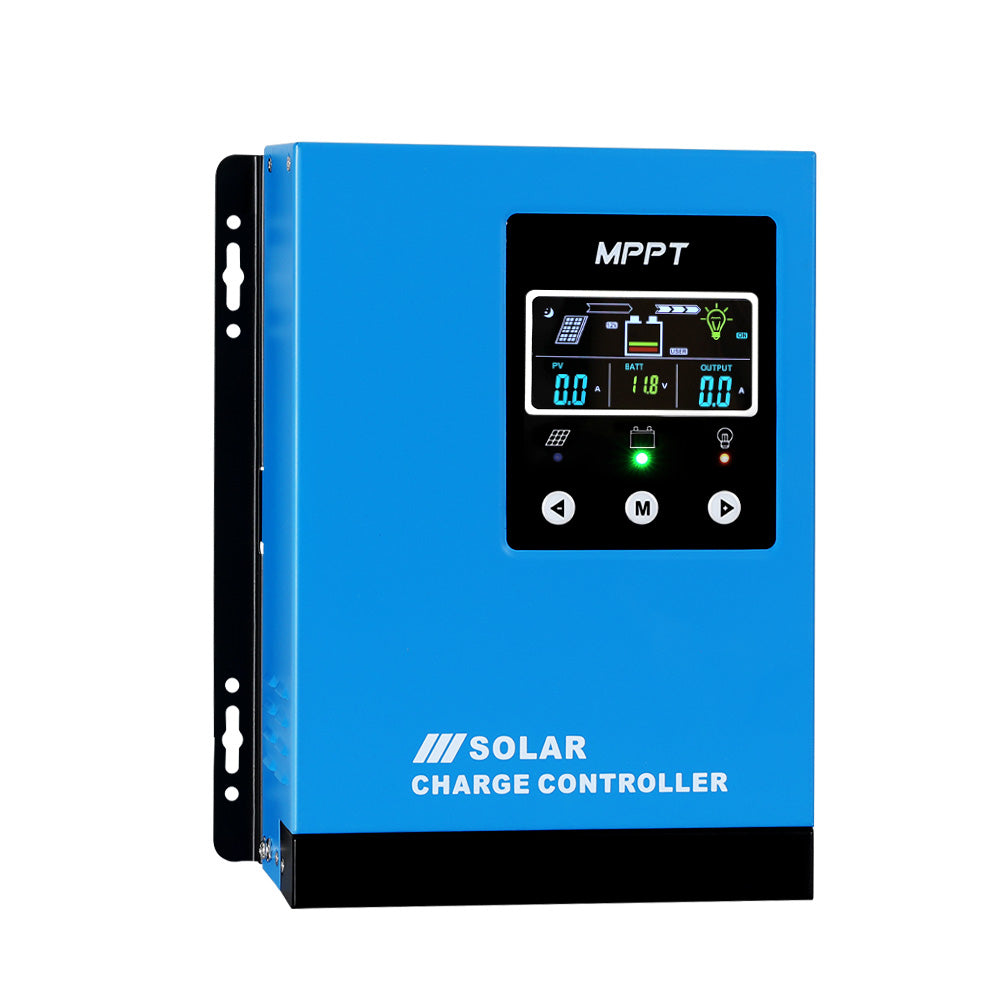

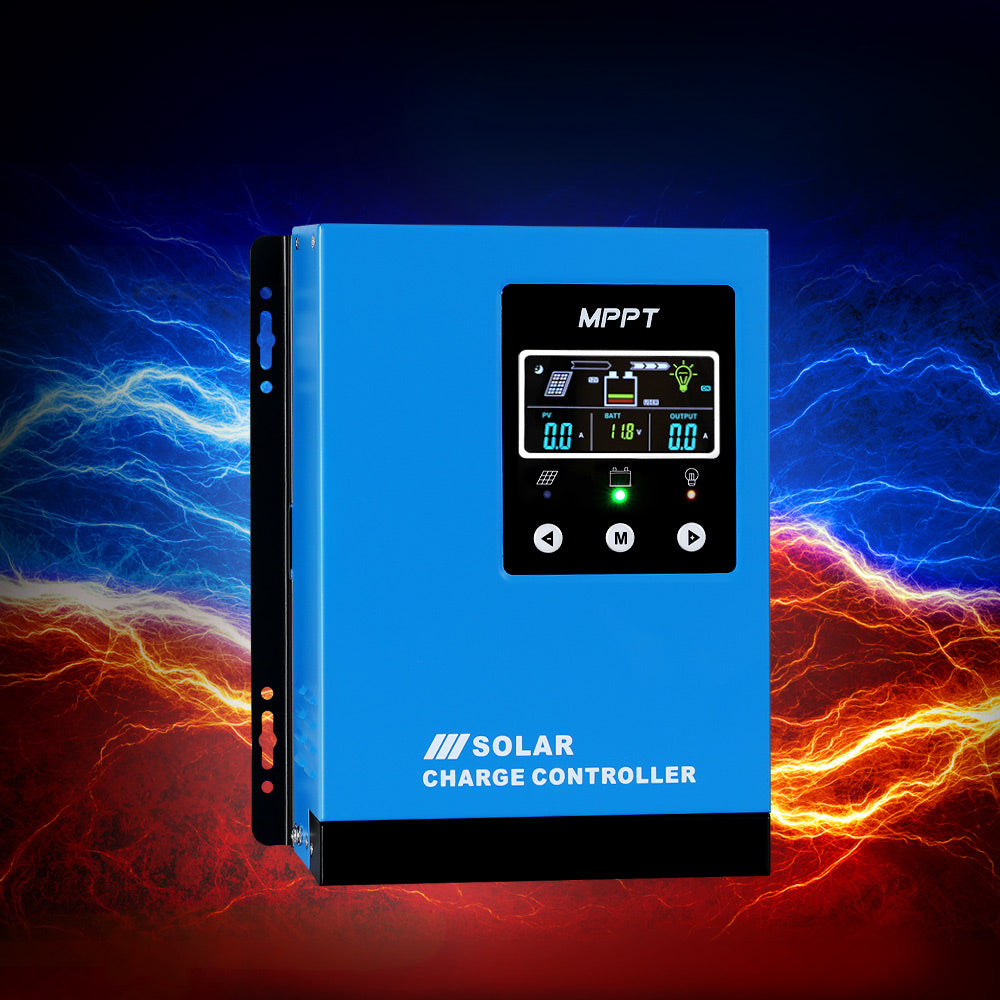

Giantz 60A MPPT Solar Charge Controller High-Efficiency Multi-Stage Charging with LCD Display
Power up your off-grid system with the Giantz 60A MPPT Solar Charge Controller, engineered for peak performance and battery protection. Featuring advanced MPPT (Maximum Power Point Tracking) technology, this controller delivers up to 99% tracking efficiency and 97% maximum charging efficiency, ensuring optimal power usage from your solar panels.
Built to support 12V, 24V, 36V, and 48V systems, the controller auto-detects voltage and adjusts accordingly. A backlit LCD display and intuitive interface offer user-friendly monitoring, while the integrated cooling fan and iron heat sink ensure safe operation under load. With built-in protection against overcharging, reverse polarity, overloading, and overheating, your system is always safeguarded.
Compatible with various battery types (GEL, SLD, FLD, USR, Li-ion), this controller is ideal for solar setups of all sizes—from RVs and cabins to farms and remote power systems.
Features:
- Creative MPPT technology with up to 99% tracking accuracy
- Supports 12V/24V/36V/48V systems with auto-voltage detection
- High 97% charging efficiency with multi-stage charging
- LCD backlit display for real-time data

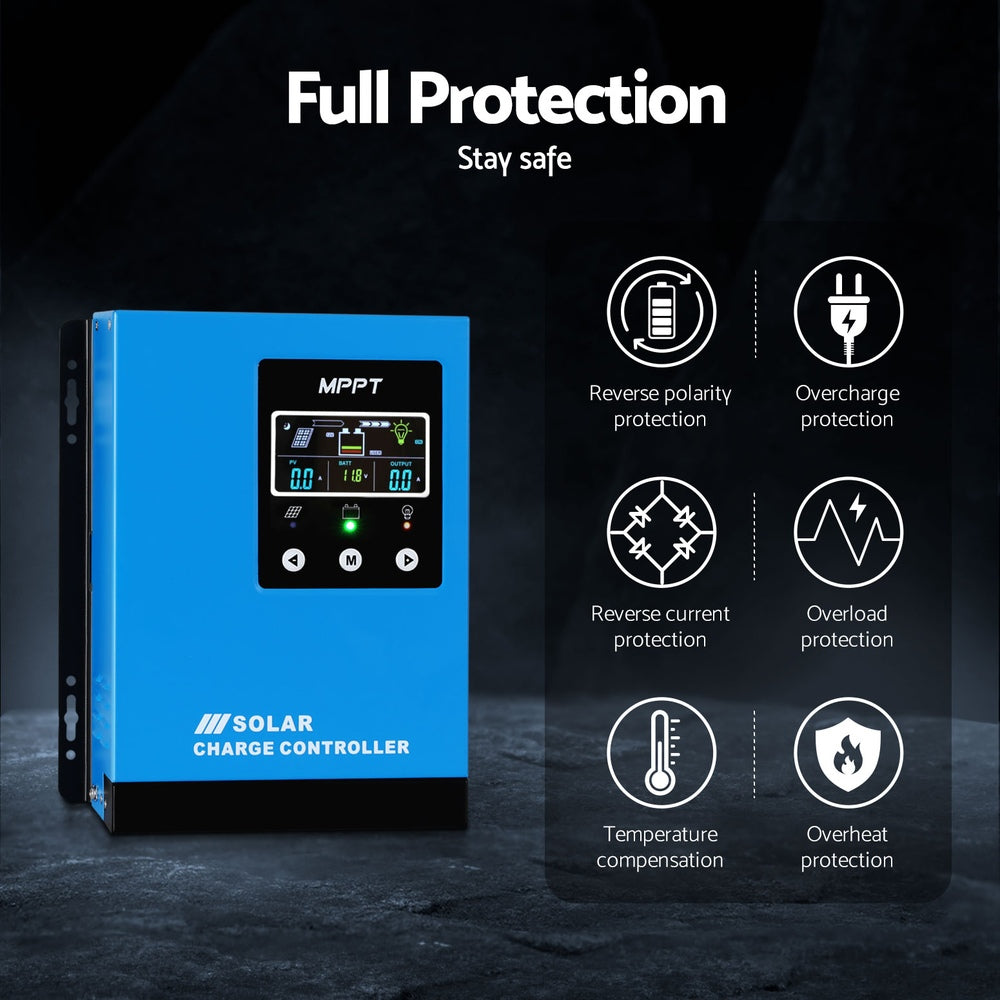

- Comprehensive system protection: overcharge, reverse polarity, overload, overheat
- Iron case with built-in cooling fan for thermal stability

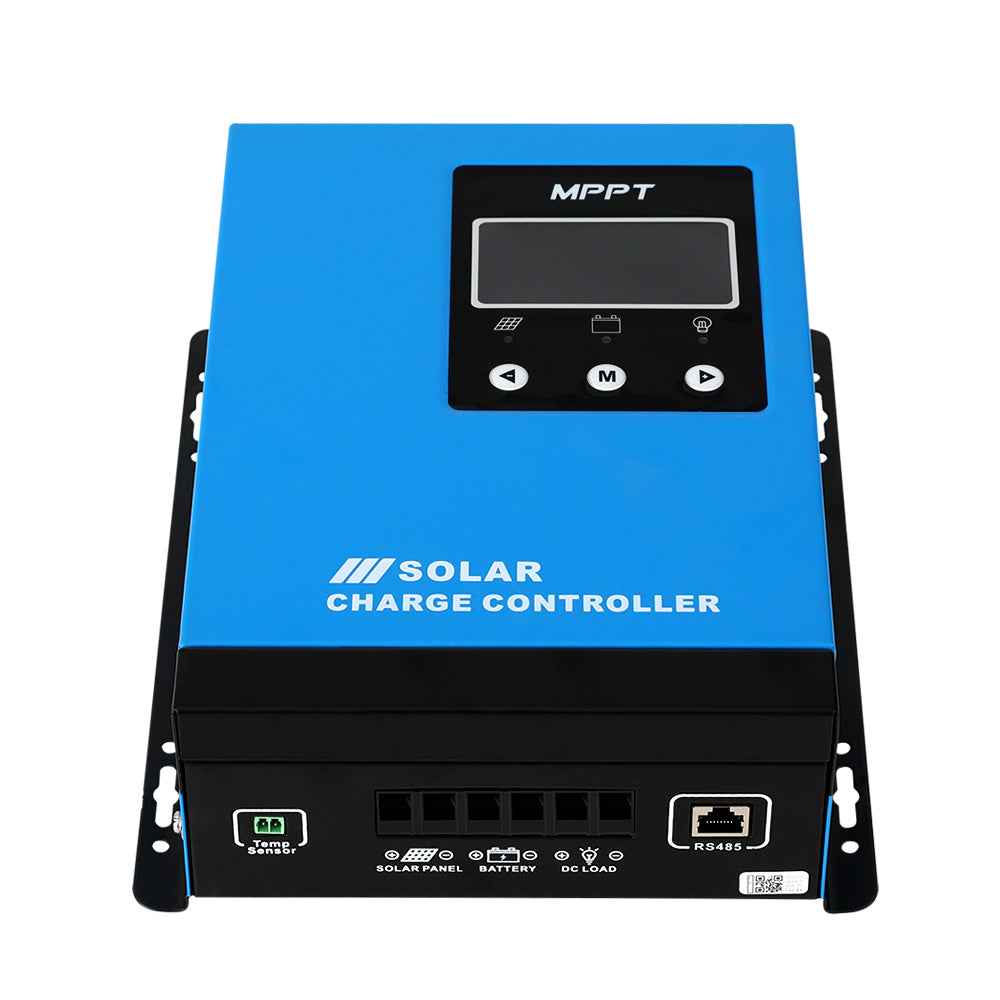

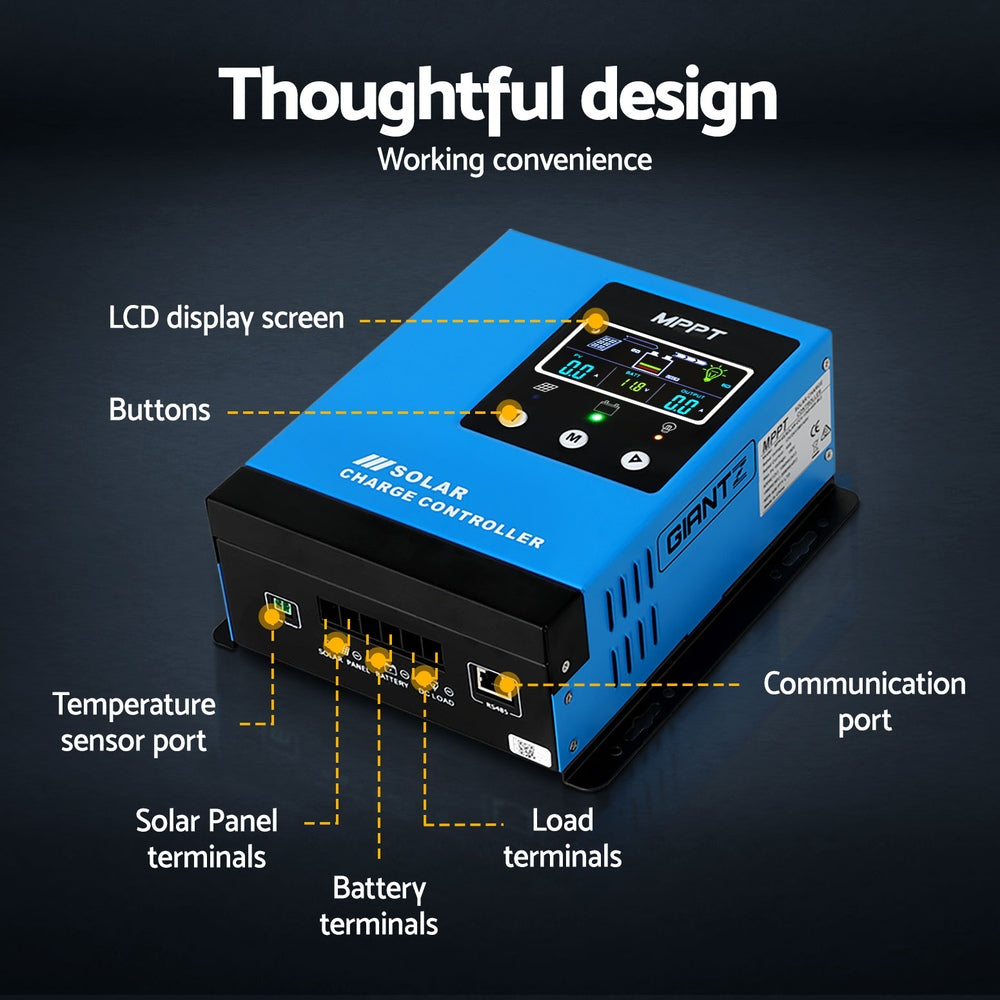

- RS485 and RJ45 communication ports for advanced connectivity
- Wide battery compatibility: GEL, SLD, FLD, USR, Li-ion
- Durable and compact for outdoor and indoor use
Specifications:
-
Rated Charge Current: 60A
-
System Voltage: 12V / 24V / 36V / 48V (Auto-detect)
-
Max PV Input Power:
12V: 780W
24V: 1560W
36V: 2340W
48V: 3120W
-
Max PV Input Voltage: 138V (at 25°C)
-
Terminals: Supports up to 3 AWG
-
Operating Temp: -20°C to +55°C
-
Storage Temp: -20°C to +80°C
-
Humidity: 10%-90% (non-condensing)
-
Weight: 3.05kg
-

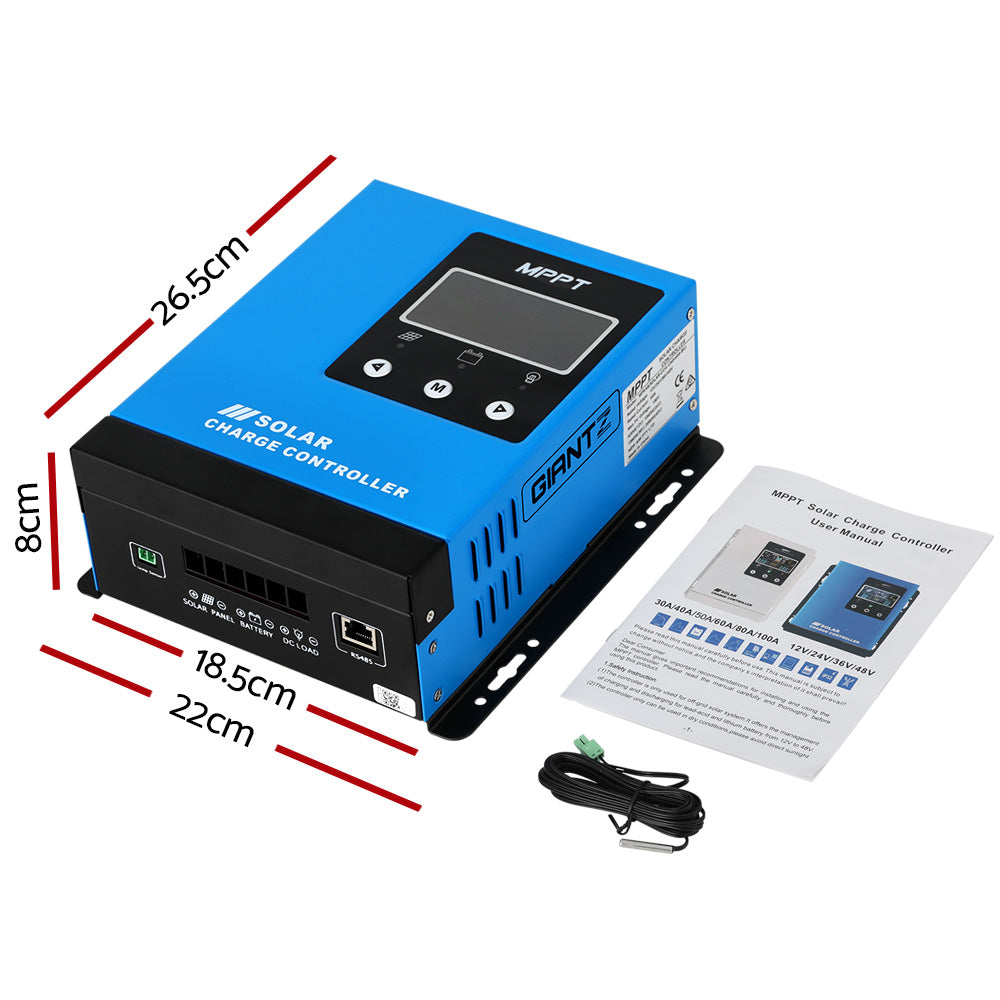

Dimensions: 22 x 8 x 26.5cm (L x W x H)
Package Contents:
1 x Giantz MPPT Solar Charge Controller
1 x Temperature Sensor
1 x User Manual
This product comes with a 1-year warranty.
