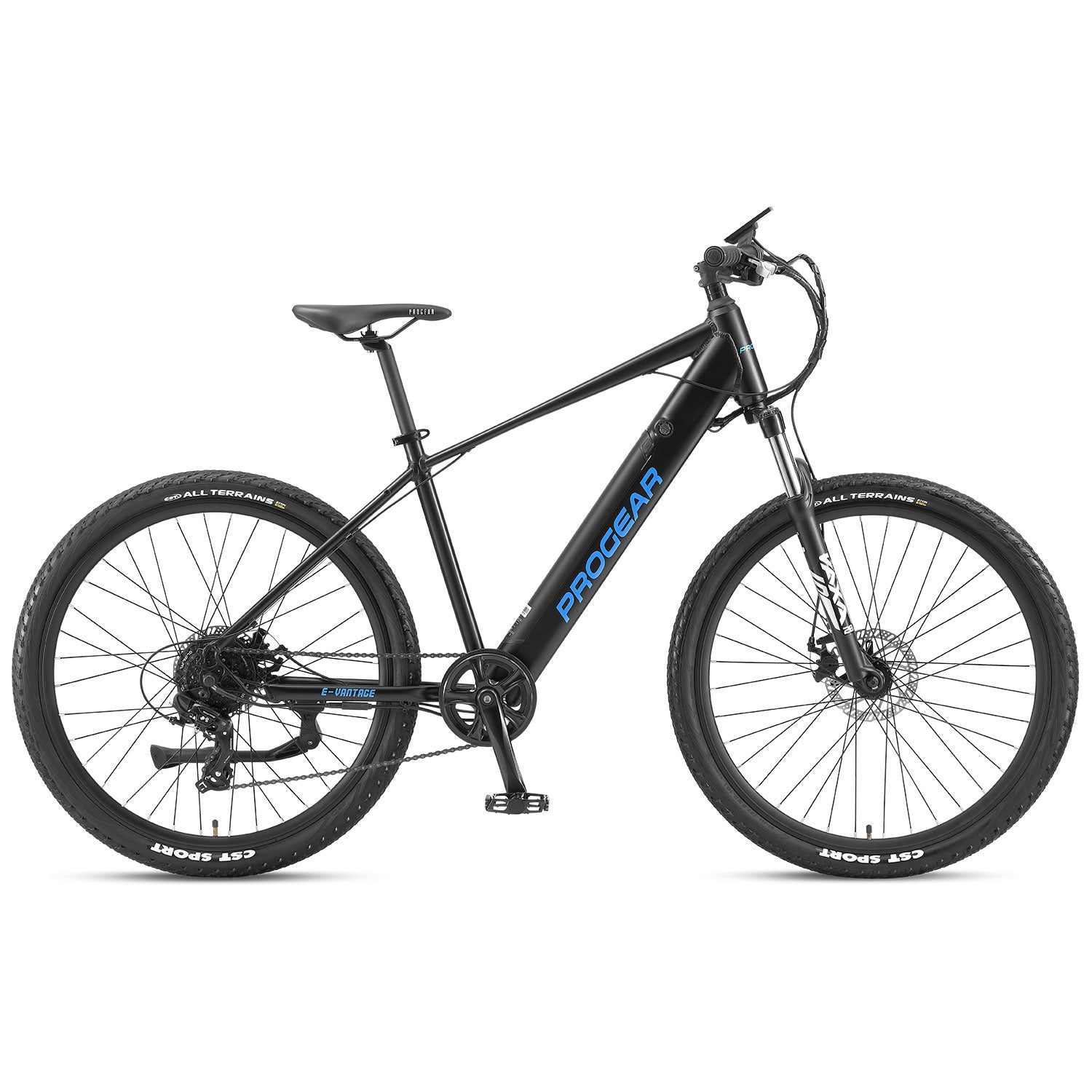

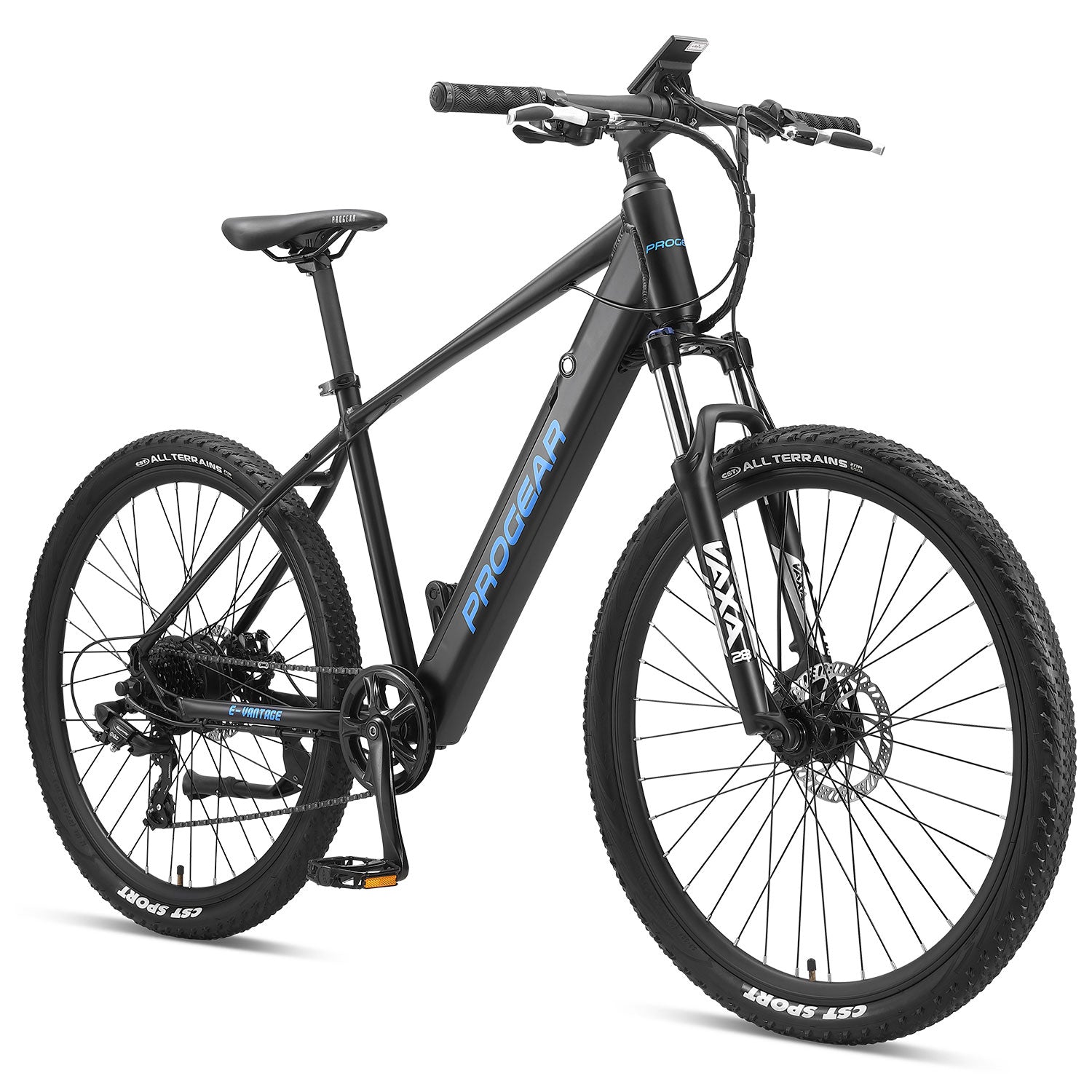

Technical Specifications
Frame: Alloy 27.518"
Fork: Suspension Fork, 27.5", 100mm Travel with Lockout
Handlebar: Alloy Width 680MM, 6 rise
Stem: Alloy 70mm, +-7
Grip: 130MM
Crank sets: Crank Length 170mm, 36t Chainring
BB Sets: L:BB73*127.5mm
Pedal: Alloy 9/16?
Chain: 1/2"*3/32"*116L
Freewheel: Shimano CS-HG200-8, 8-SPEED, 12-14-16-18-21-24-28-32(BR)

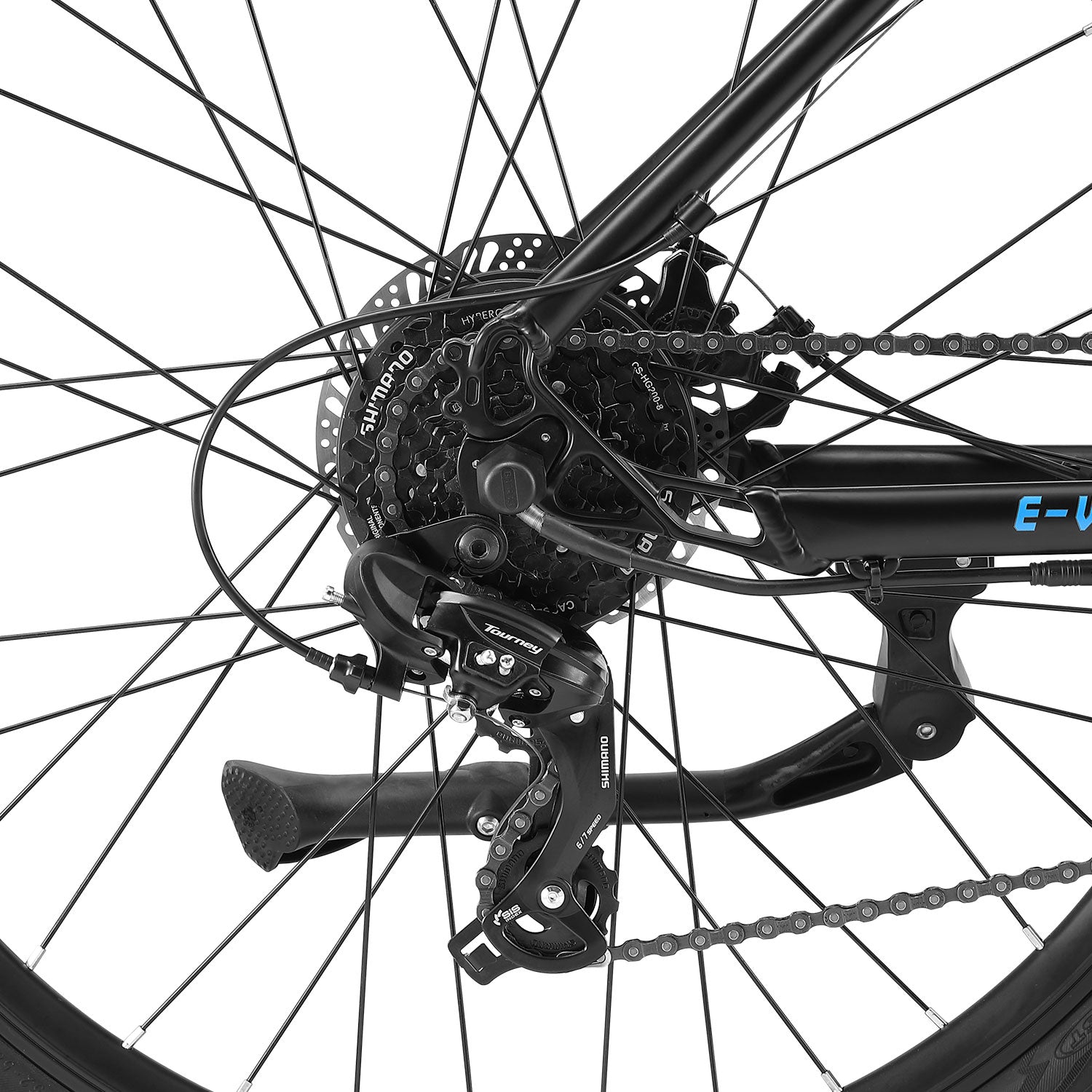

R.Derailleur: Shimano TY300D
Shiter: Shimano SL-M315-8R, RIGHT, 8-SPEED RAPIDFIRE PLUS

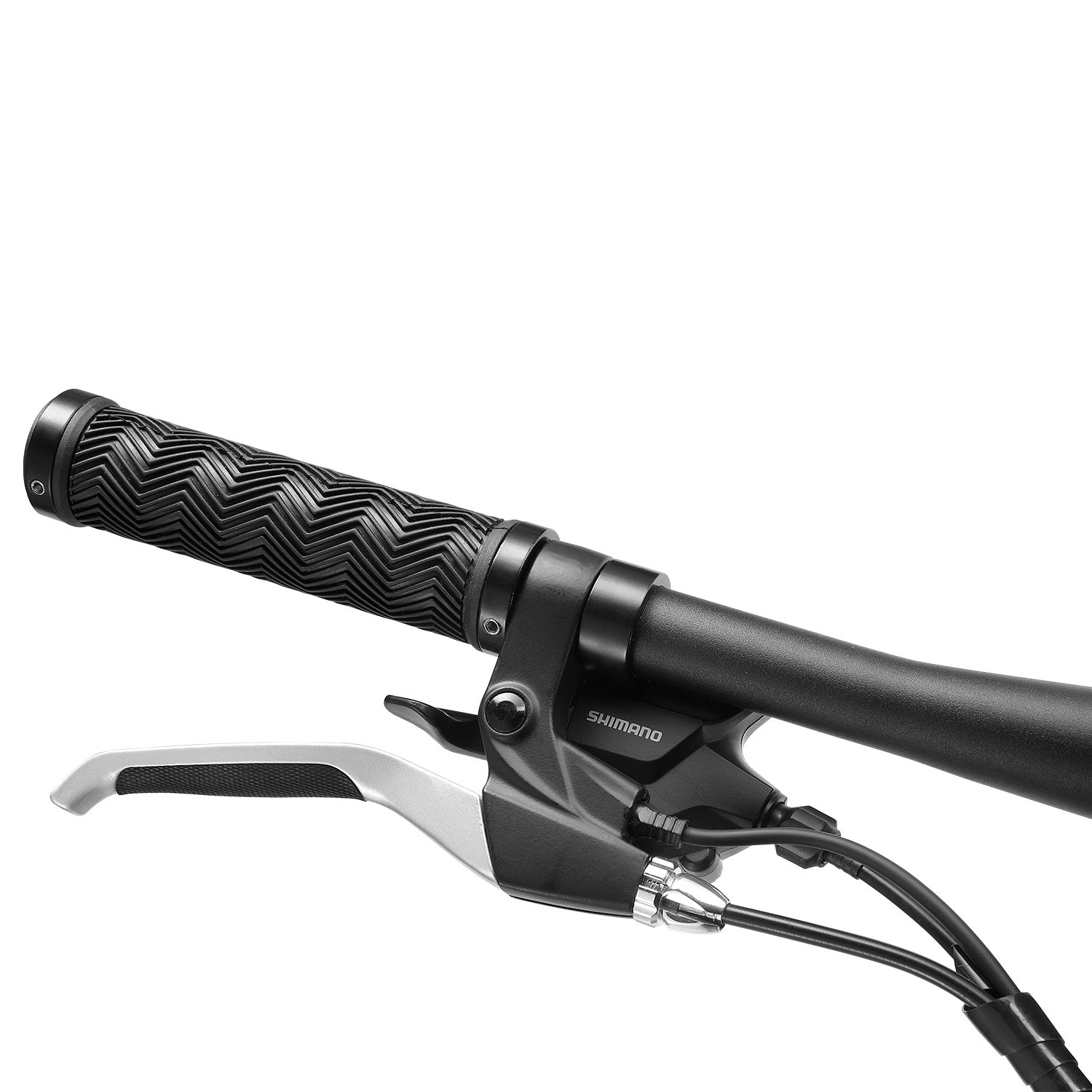

Brake: Mechanical disc brake, Rotor=160mm
Hub Front: 3/8"*13G*36H
Rims: 27.5"(650B)*1.5*13G*36H double wall H=25
Spokes: 253mm W/12mm brass nipple
Tire: 27.5"*2.10
Seat Post: ?27.2*350mm
Seat Clamp: ?34.9 Quick Release
Kickstand: Alloy Kickstand
Electrical Components

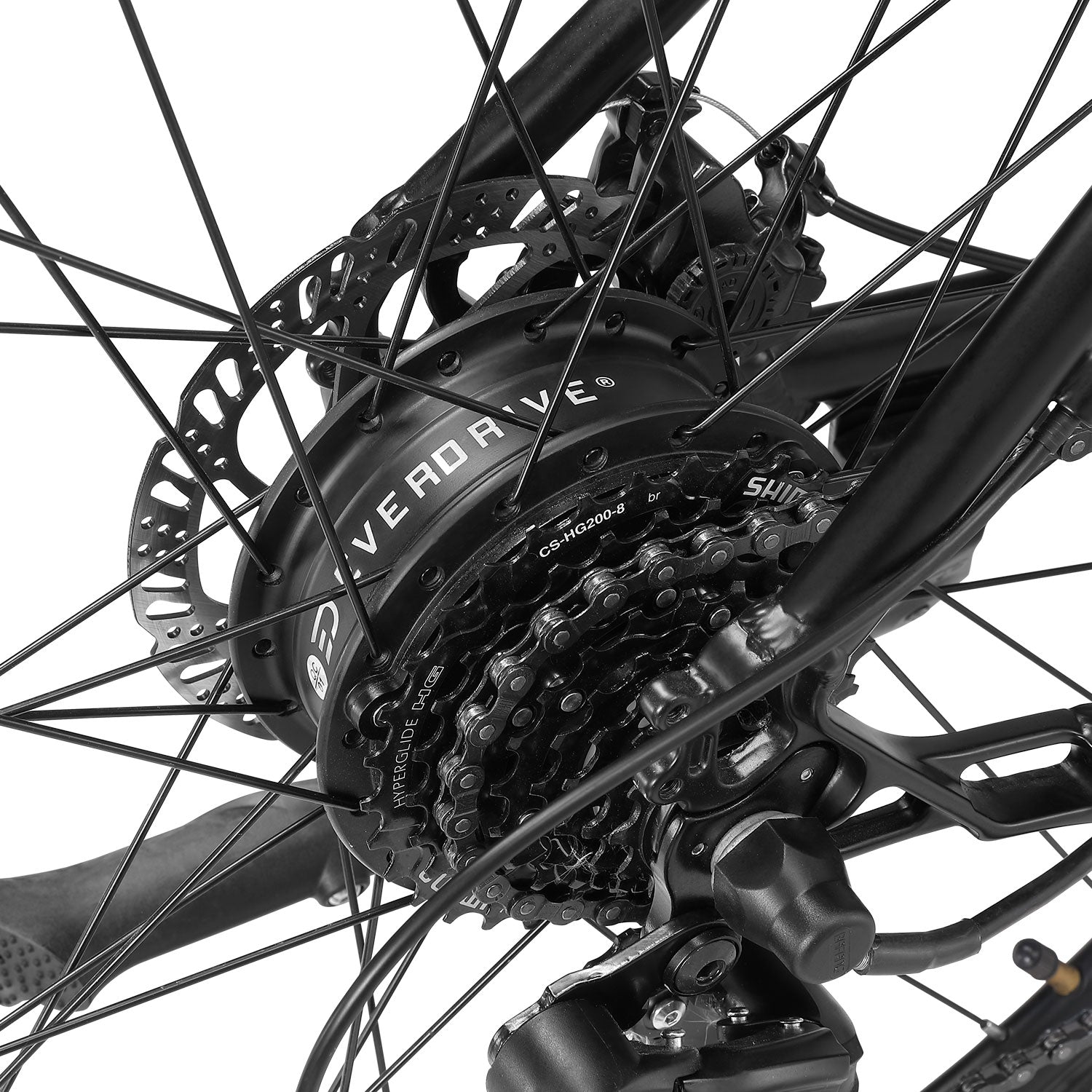

Motor: 27.5*36V*250W 25KM/H - Complies to EN15194
Torque Sensor: Dual hall Cable length:150mm

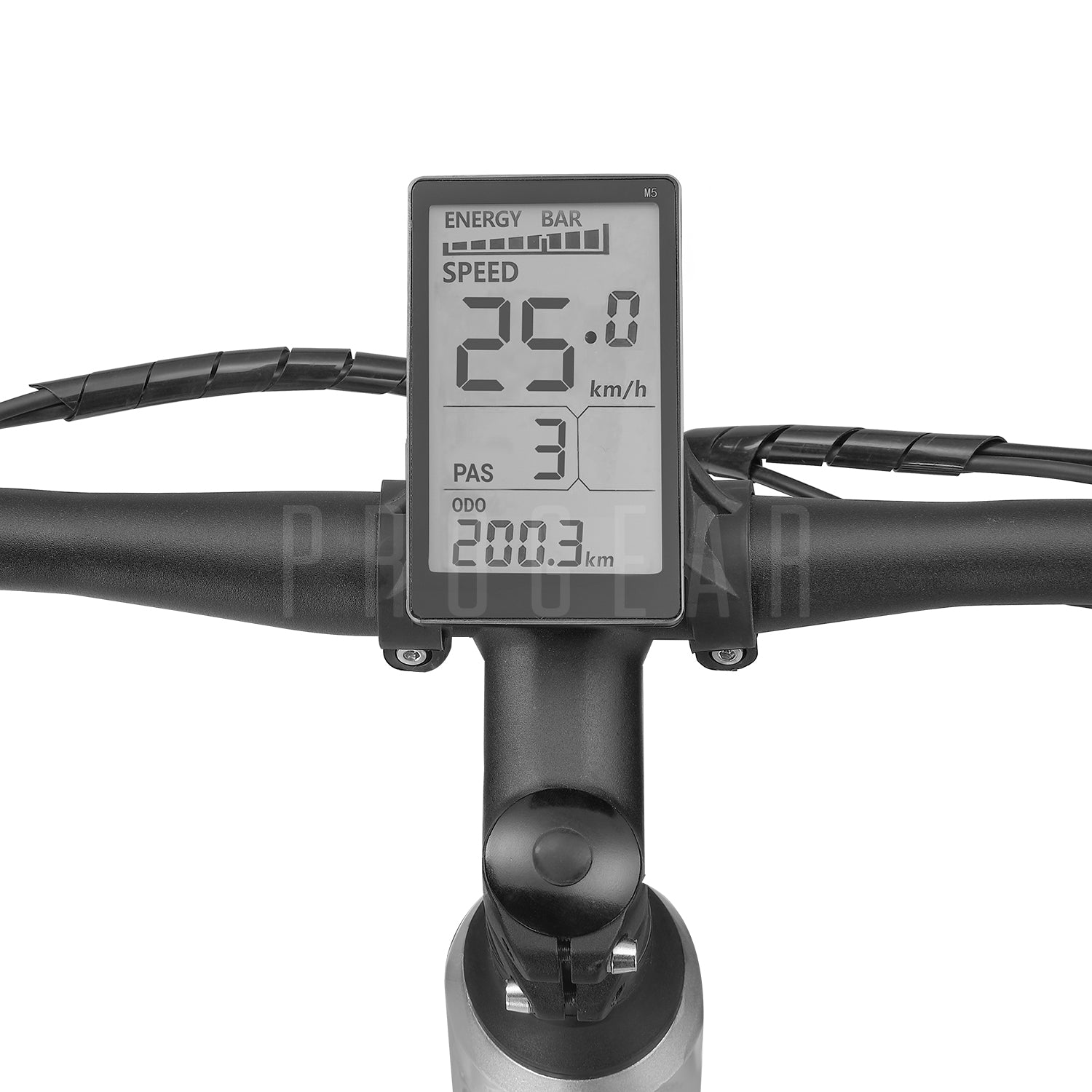

Display: 0-5 assist level, Max Speed 25kph
Controller: 27.5/700C 36V*350W 15A+1
Battery: 36V*10.4A
Charger: 42V 2A DC2.1 charger port 1200+900MM
Electric Bike Battery Information
The travel distance after a full charge on this e-Bike can vary from 30km to 70km.
There are several factors that will affect how long the battery will last after a full charge.
Factors include:
Level of pedal assistance higher level of assistance will use more battery charge
Weight of Rider & Luggage more weight may require more power from the battery
Terrain & Weather Conditions Terrain & wind may cause drag, and will require more power to maintain speed.
Tyre Conditions Incorrect tyre pressure may create more rolling resistance
Traffic/Route Conditions Stop/Start cycling may use more power to accelerate up to appropriate travelling speeds.
